Motorway Trackr - M25
Road Map

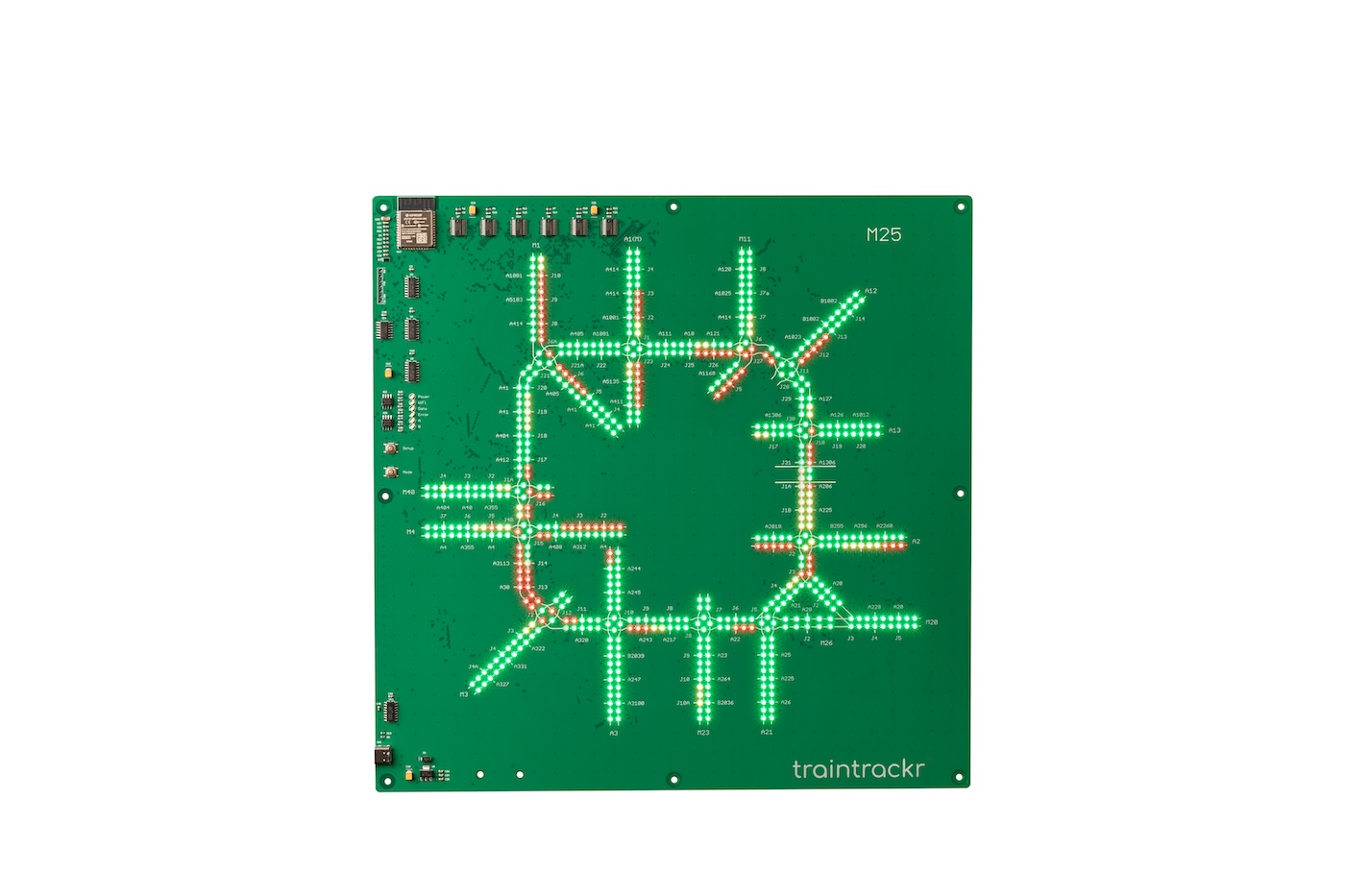

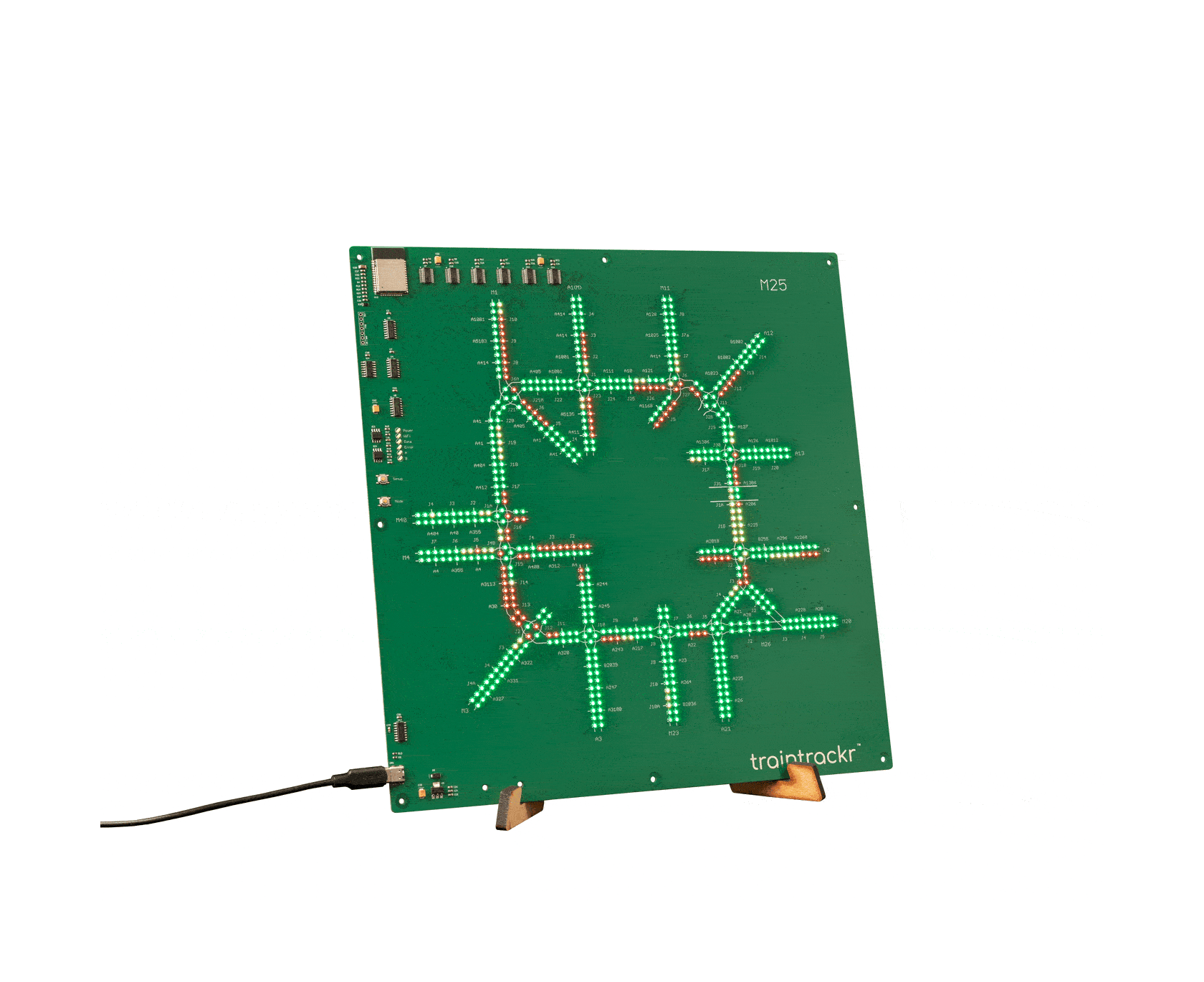

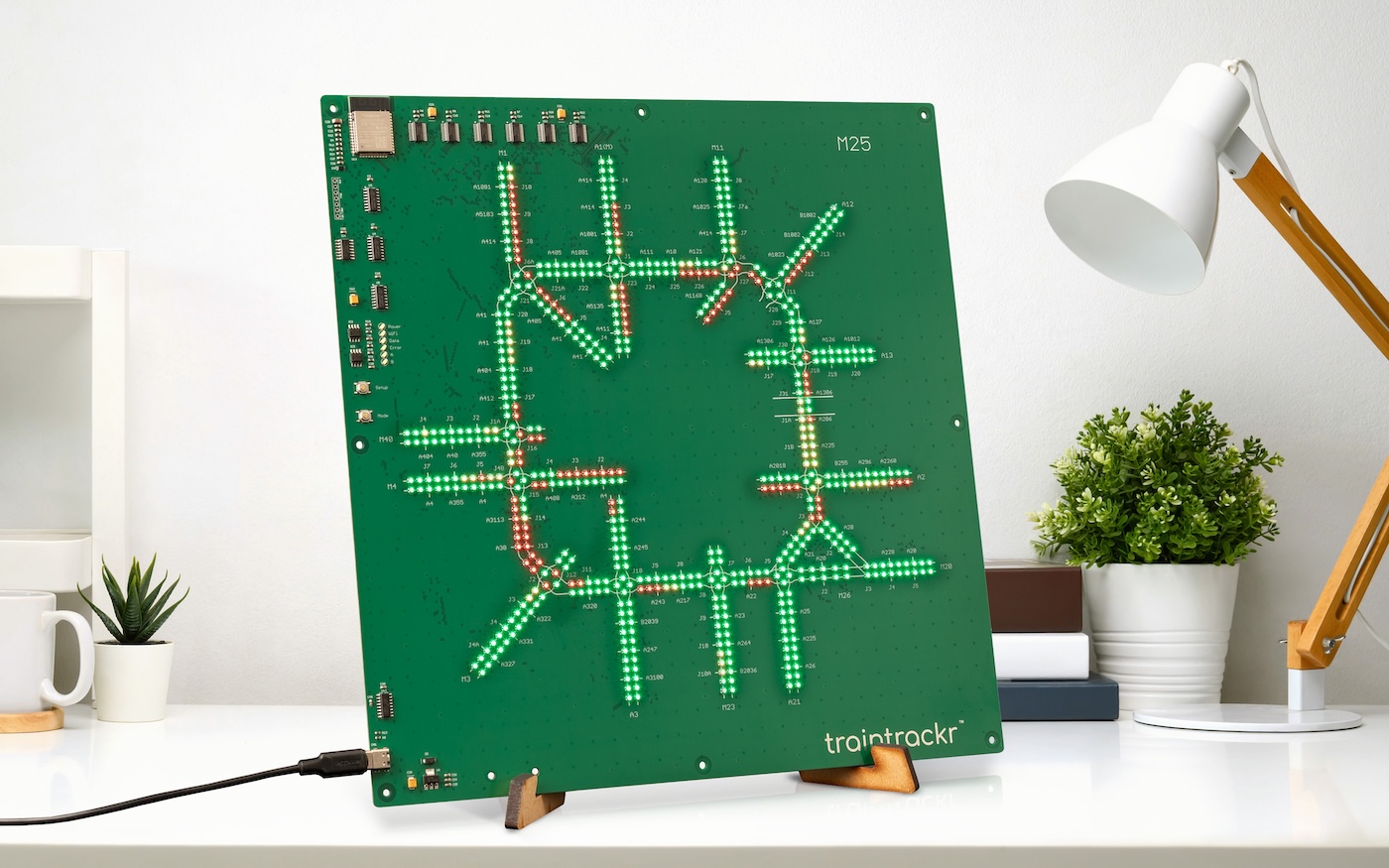

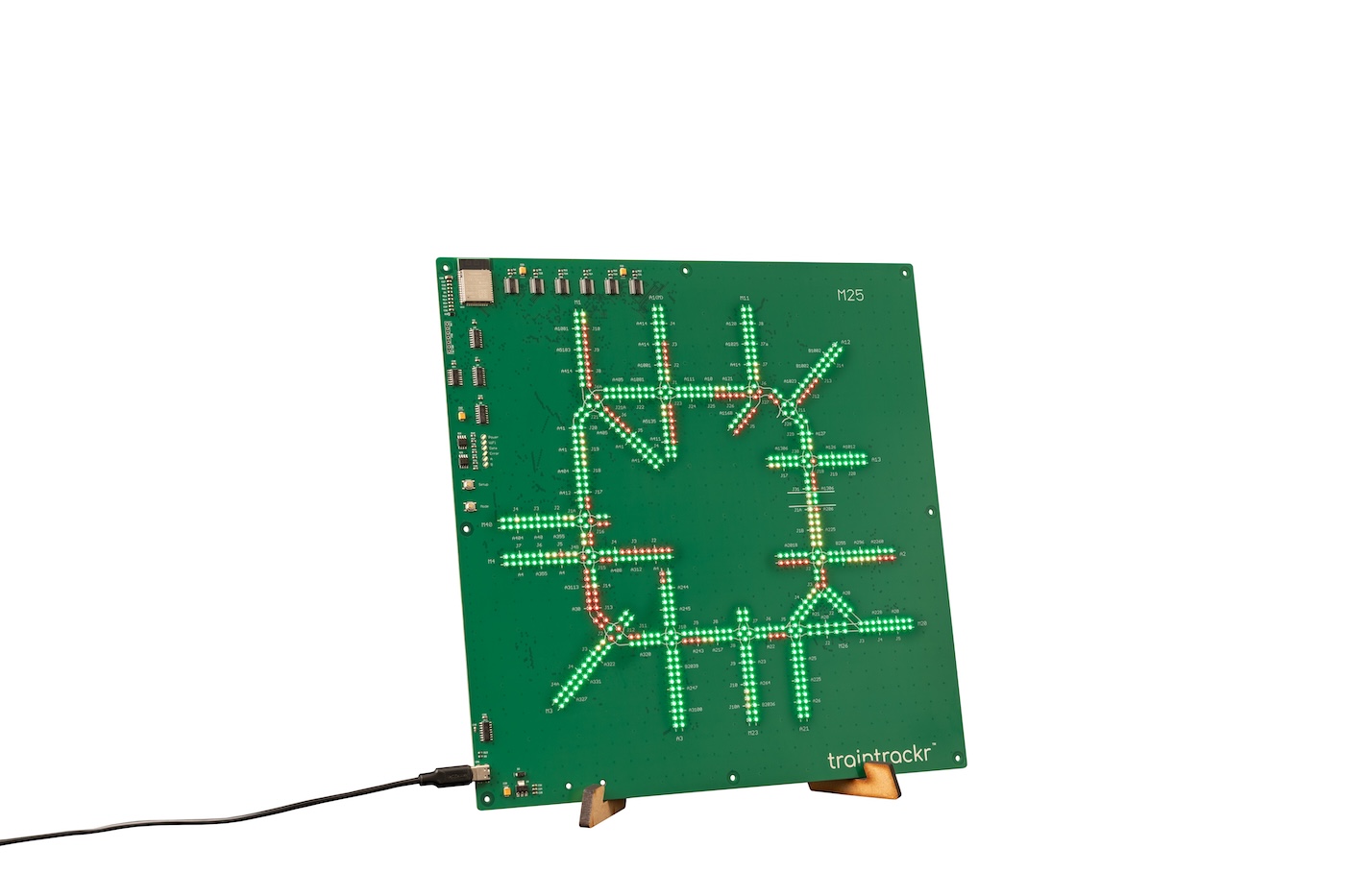

Watch traffic around the M25 London Orbital Motorway in real time. The Motorway Trackr - M25 uses WiFi to display live traffic conditions on the M25 London Orbital Motorway. It's a bold, distinctive piece for any home or office, with natural appeal to London commuters and road-trip planners alike.
Features of the Motorway Trackr - M25 include:

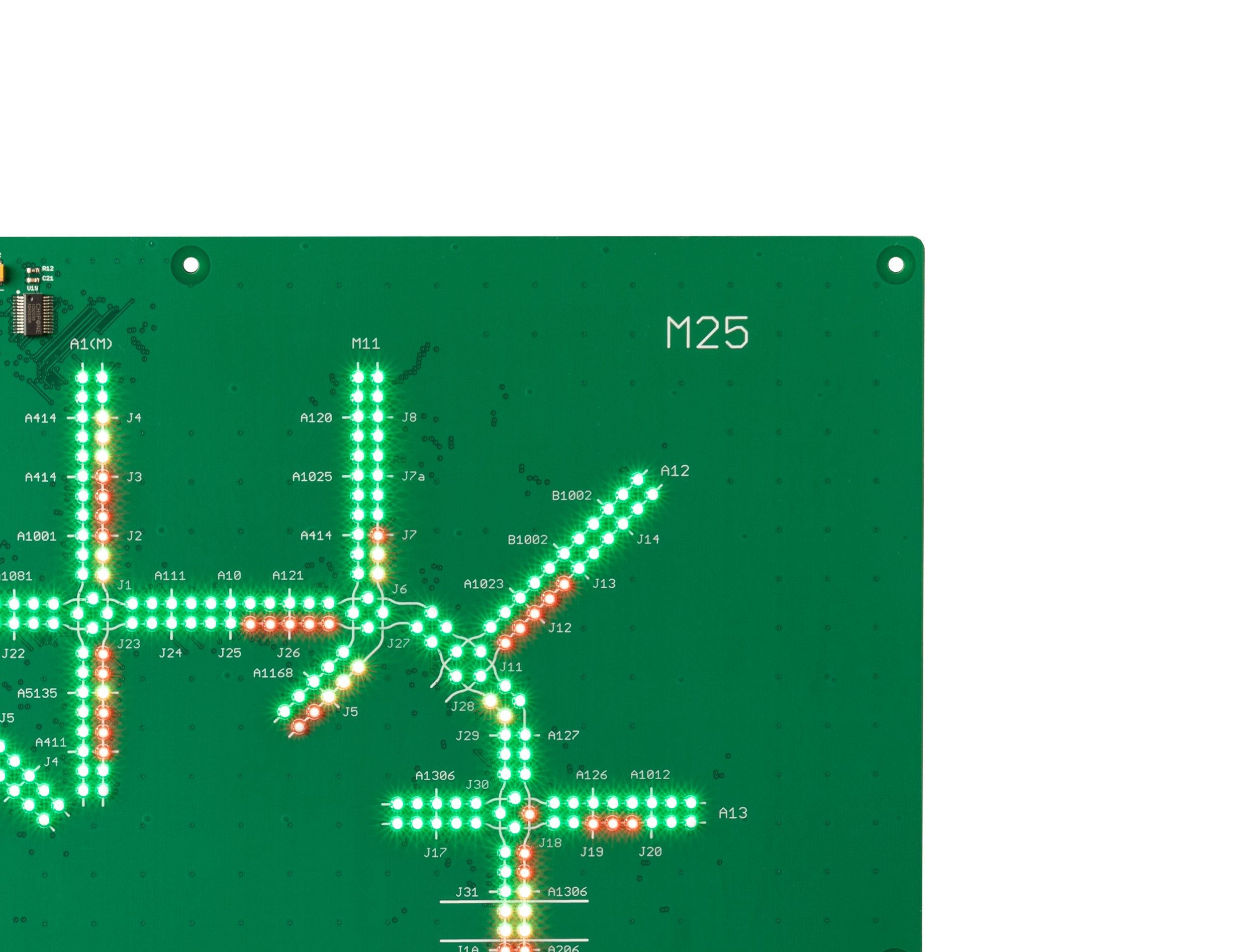

- Shows live traffic conditions, with congestion levels changing in real time as conditions change
- Tracks the full M25 loop plus the principal motorways and trunk roads feeding into it, including the M1, M3, M4, M11, M20, M23, M26, M40, A1(M), A2, A3, A12, A13 and A21
- Adjustable brightness with manual, scheduled and automatic brightness options
- Includes a laser-cut wooden display stand, USB-C cable and instruction card

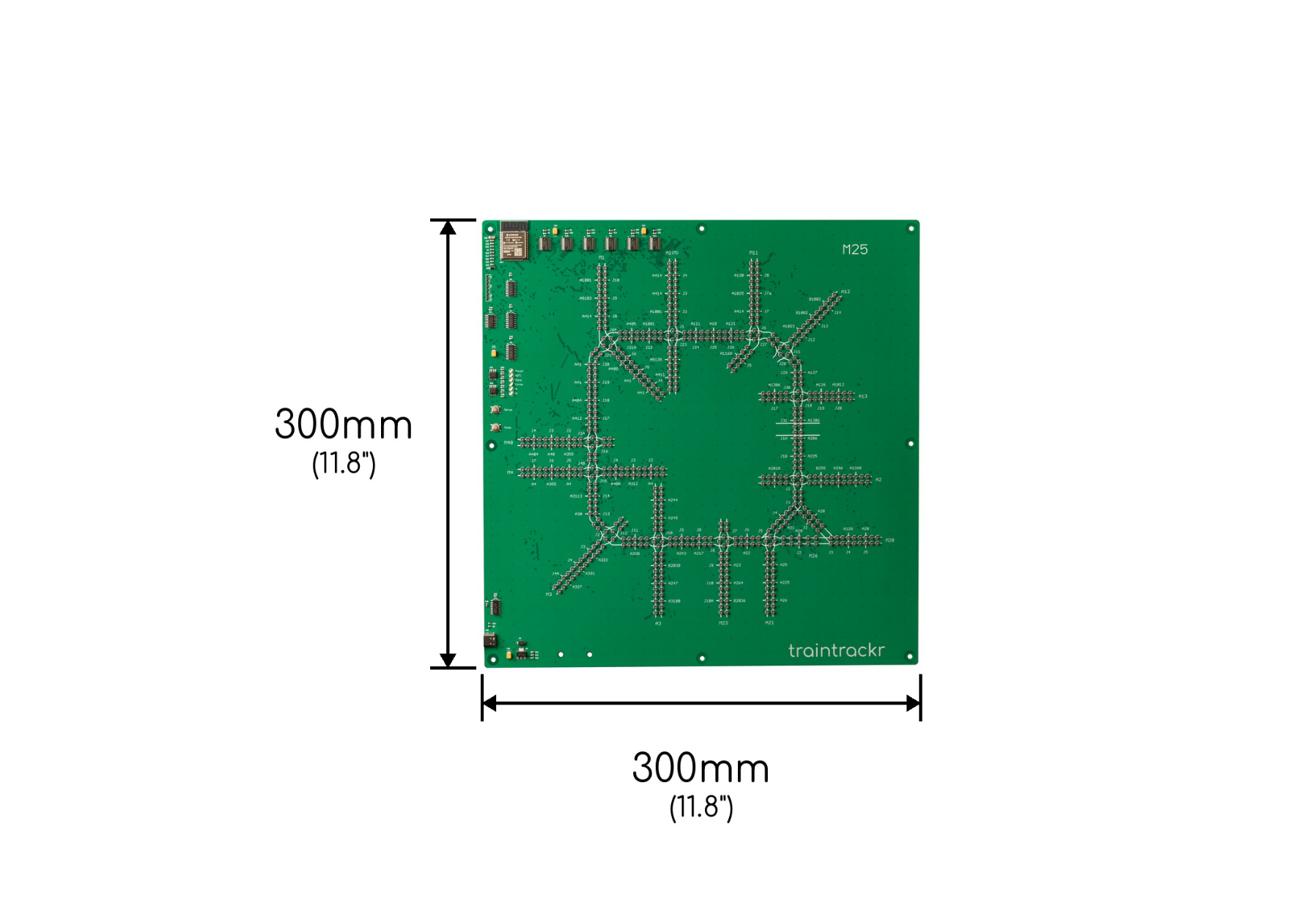

- Measures 300mm x 300mm (11.8in x 11.8in)
£179
Ships from the UK
No UK Import Duty
NEW EU Orders
Include Import VAT
More Information
Ships to the UK
and Europe
Switch to US
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2/WPA3
- Data: Connects to our server every minute
- Or connect to your own data sources

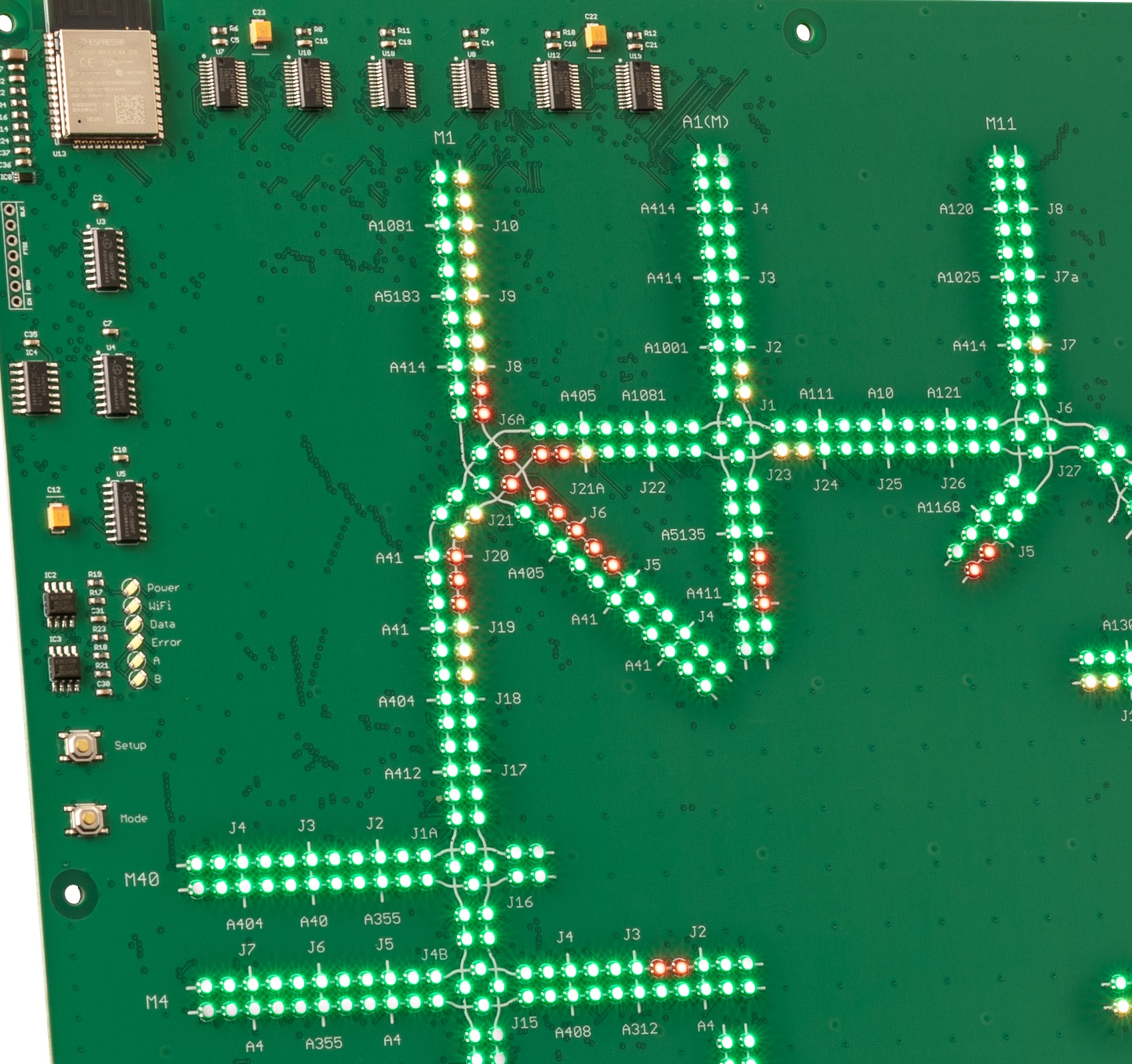

- LED Count: 638
- LED Type: 2020 Surface Mount
- LED Size: 2.0mm x 2.0mm
- LED Colour: Multicolour (RGB)
- Brightness control: 16 Level
- 5V
- Included: 1.8M USB Cable

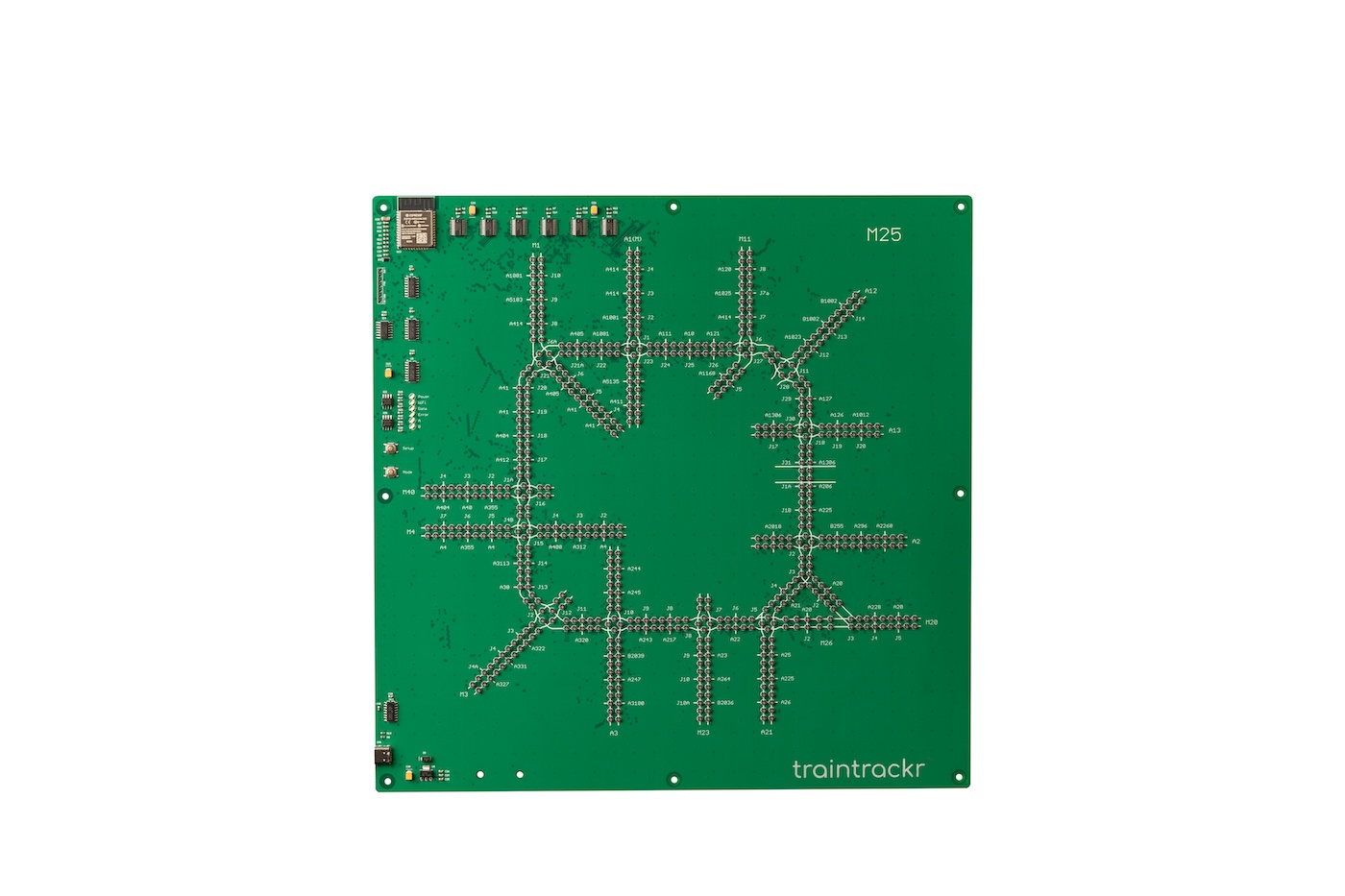

- Material: 1.6mm FR-4
- Size: 300mm x 300mm (11.8in x 11.8in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2028/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble

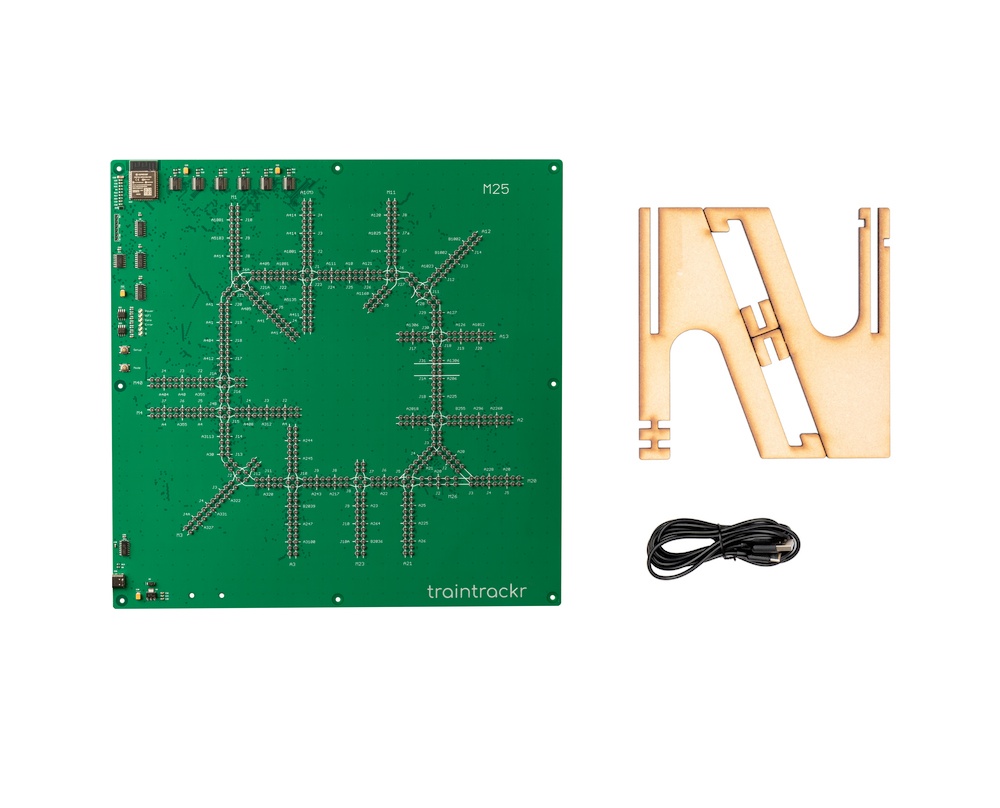

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the UK and Europe
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
