New York City Subway
Rapid Transit
£169
In stock
Get updates about new maps
Ships from the UK, no UK import duty
EU orders include import VAT, more information
1 year warranty included
Shipping to the US or Canada? Switch to our US store
Hello! It looks like you're visiting from North America.
For quicker delivery to the US and Canada, try our US store.
Take me to the US store
Take me to the US store
About this product
Tracks trains on the MTA in New York City, showing trains arriving in stations live, as each vehicle moves around the network.
Our MTA board shows all 1, 2, 3, 4, 5, 6, 7, A, B, C, D, E, F, G, J, L, M, N, Q, R, W, Z and shuttle lines.
At a glance
- Receives live data over WiFi
- LEDs update every 1/10 second
- Uses 599 Red, Green, Blue, Orange, Yellow, White, and Purple LEDs

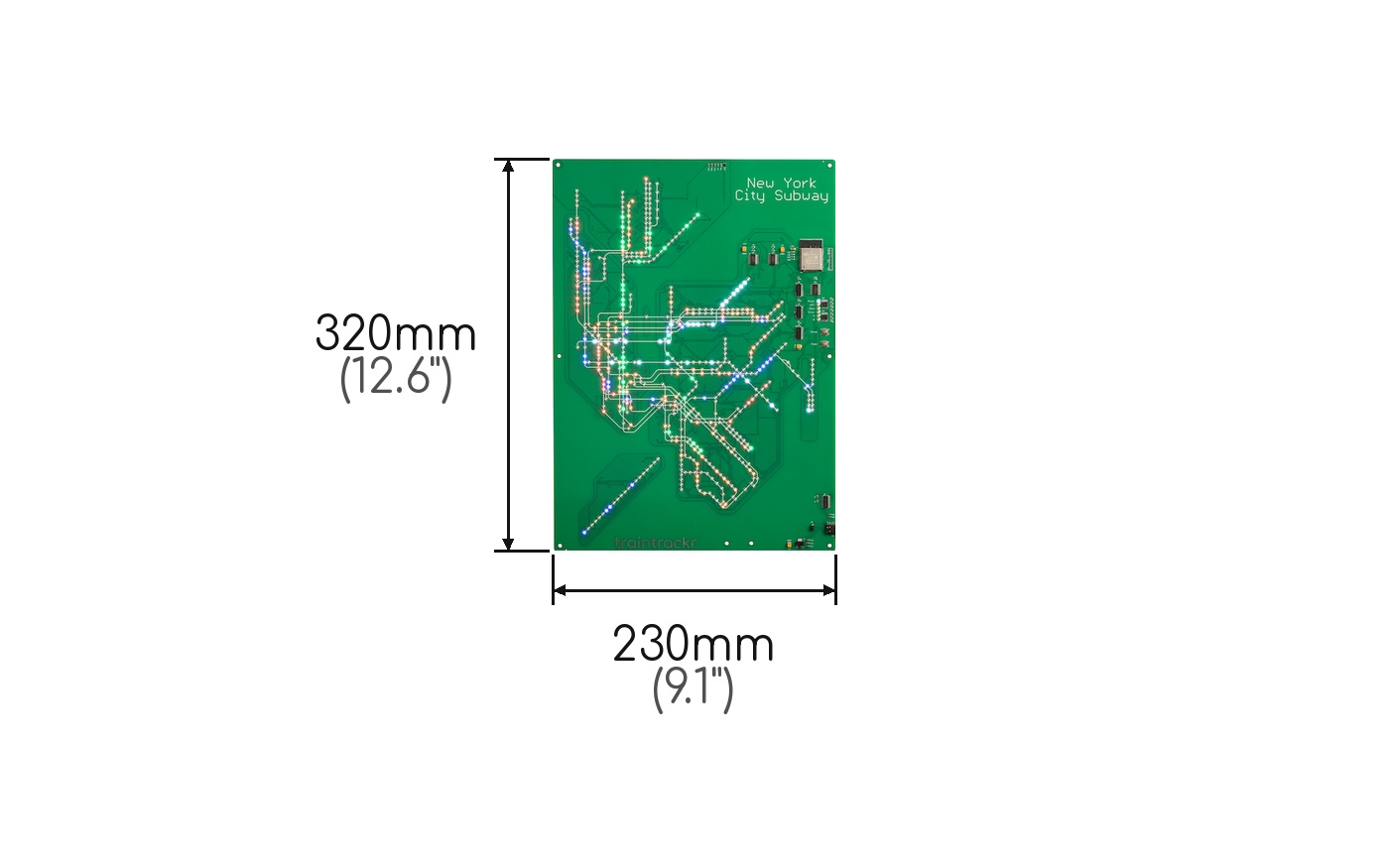

- 230 × 320mm (9.1 × 12.6in)
Specifications
Connectivity- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2/WPA3
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 599
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Red, Green, Blue, Orange, Yellow, White, and Purple
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 230mm x 320mm (9.1in x 12.6in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the box
Package Contains- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and warranty
Shipping- Ships to the UK and Europe
- Tracking code supplied once dispatched
- Standard 1 Year
Maker friendly
Firmware- Flash the chip over USB or via FTDI pins
- Programmable using Arduino IDE, MicroPython, or other compatible development tools.
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ page.
I love your concept, I’ve bought it for my husband for Christmas, it’s a massive win as I also get the pleasure of it too!
