Specifications


Connectivity
  • WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
  • Data: Connects to our server every minute
  • Or connect to your own data sources
Display
  • LED Count: 62
  • LED Type: 0805 Surface Mount
  • LED Size: 2.0mm x 1.25mm
  • LED Colour: Blue
  • Brightness control: 16 Level
Power
  • 500mA @ 5V
  • Included: 1.8M USB Cable
Circuit Board
  • Material: 1.6mm FR-4

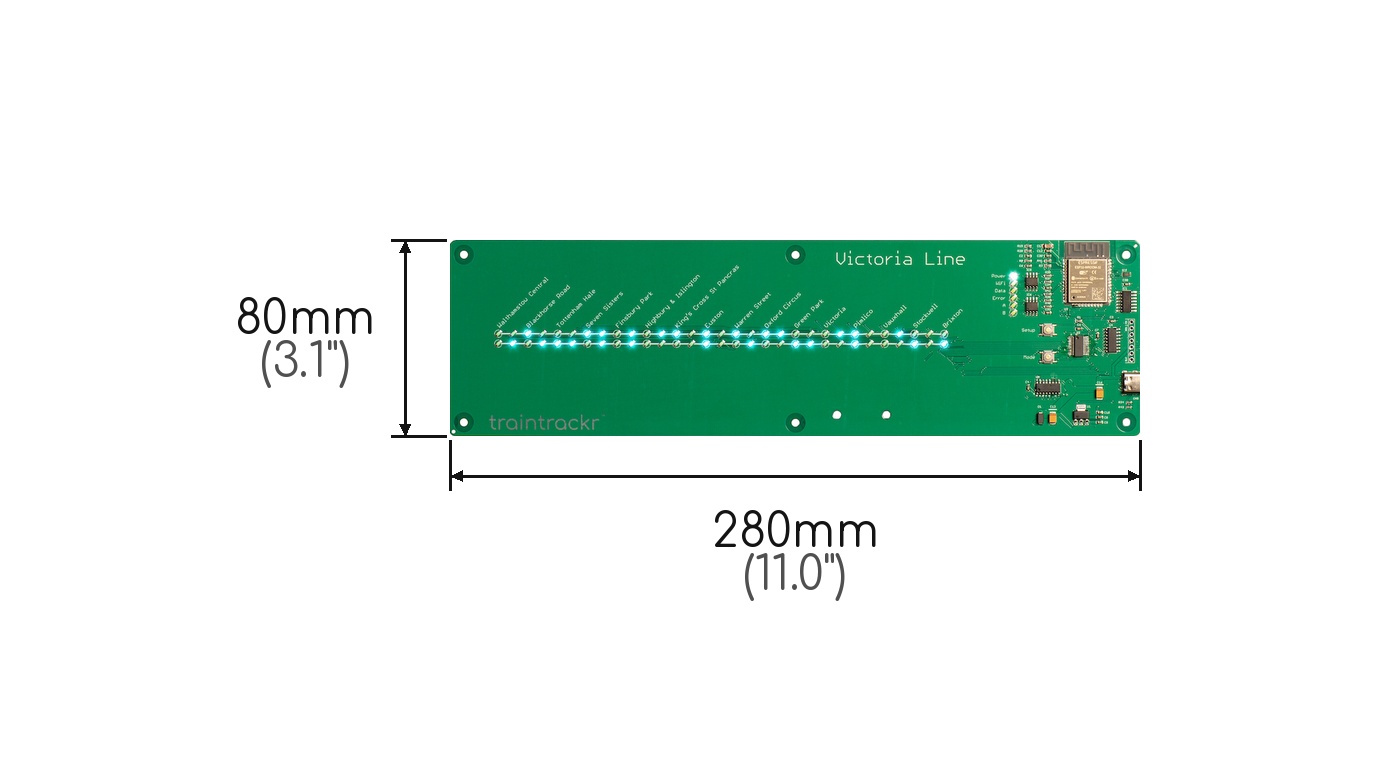

  • Size: 280mm x 80mm (11in x 3.1in)
  • Colour: Green
Main Components
  • Microcontroller: ESP32
  • LED Driver: ICN2038/ICN2012
Stand
  • Material: 6mm MDF
  • Laser cut ready to assemble

What's in the Box?


Package Contains

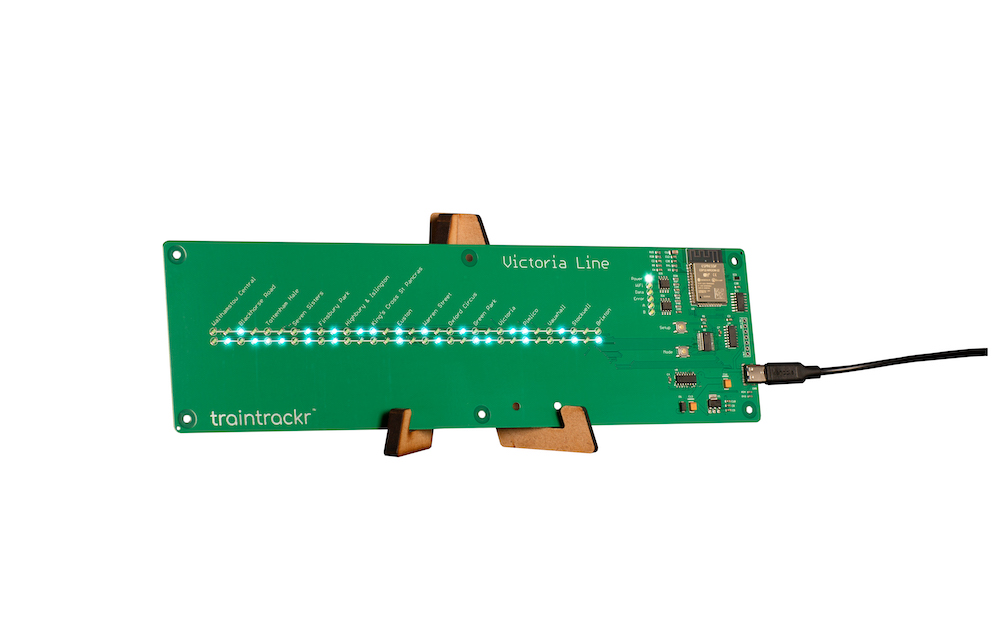

  • Live Tracker
  • Wooden Stand
  • USB Cable
  • Setup Instructions

Note: You will need to plug this into a USB phone charger or computer USB port for power.


Shipping and Warranty


Shipping
  • Ships to the UK and Europe
  • Tracking code supplied once dispatched
Warranty
  • Standard 1 Year

Maker Friendly


Firmware
  • Flash the chip via FTDI Pins
  • Program using Arduino IDE or similar
  • Reprogrammable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.


I just got the coolest, transitgeekiest thing ever. #mbta @TrackrTrain

Chuck Tanowitz, Twitter

Reviews


There are currently no reviews to display for this product
