US Map Trackr (Colour)
Geographic Map
£249
In stock
Get updates about new maps
Ships from the UK, no UK import duty
EU orders include import VAT, more information
1 year warranty included
Shipping to the US or Canada? Switch to our US store
Hello! It looks like you're visiting from North America.
For quicker delivery to the US and Canada, try our US store.
Take me to the US store
Take me to the US store
About this product

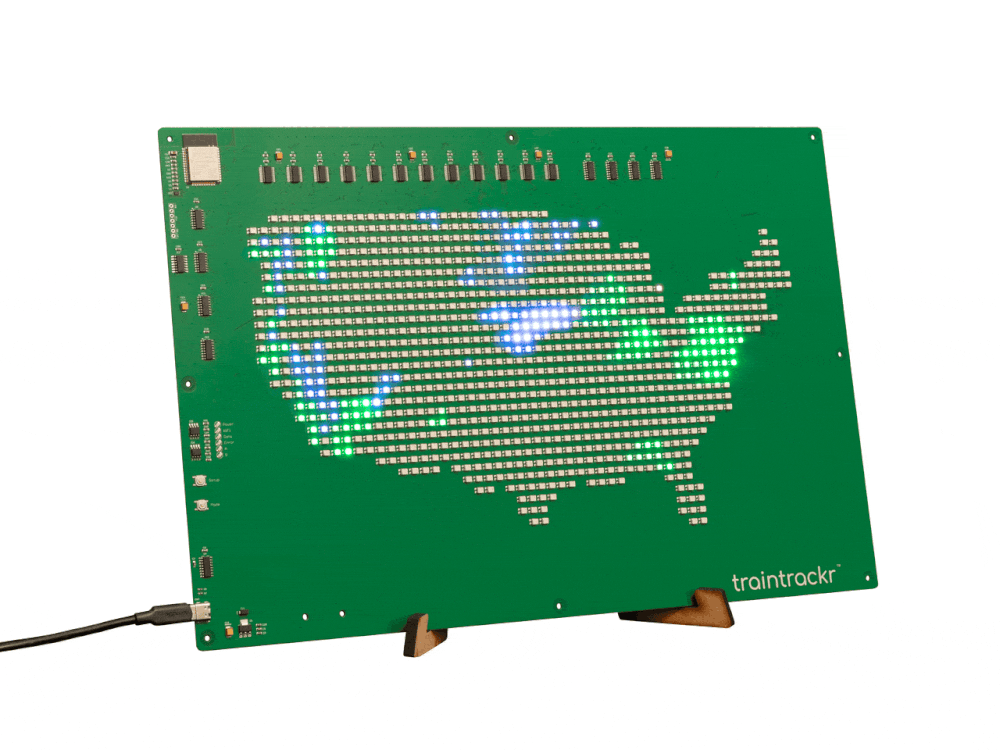

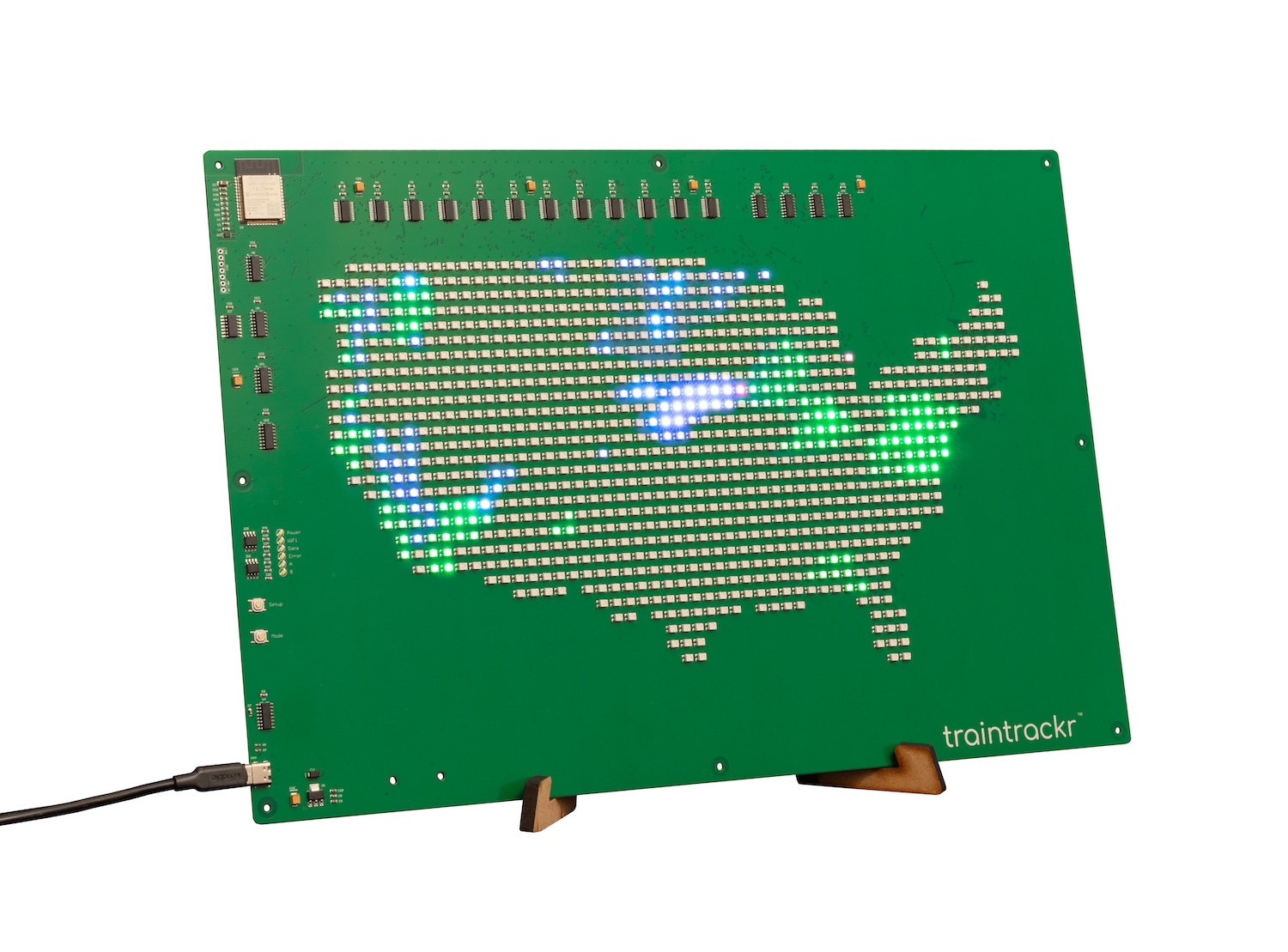

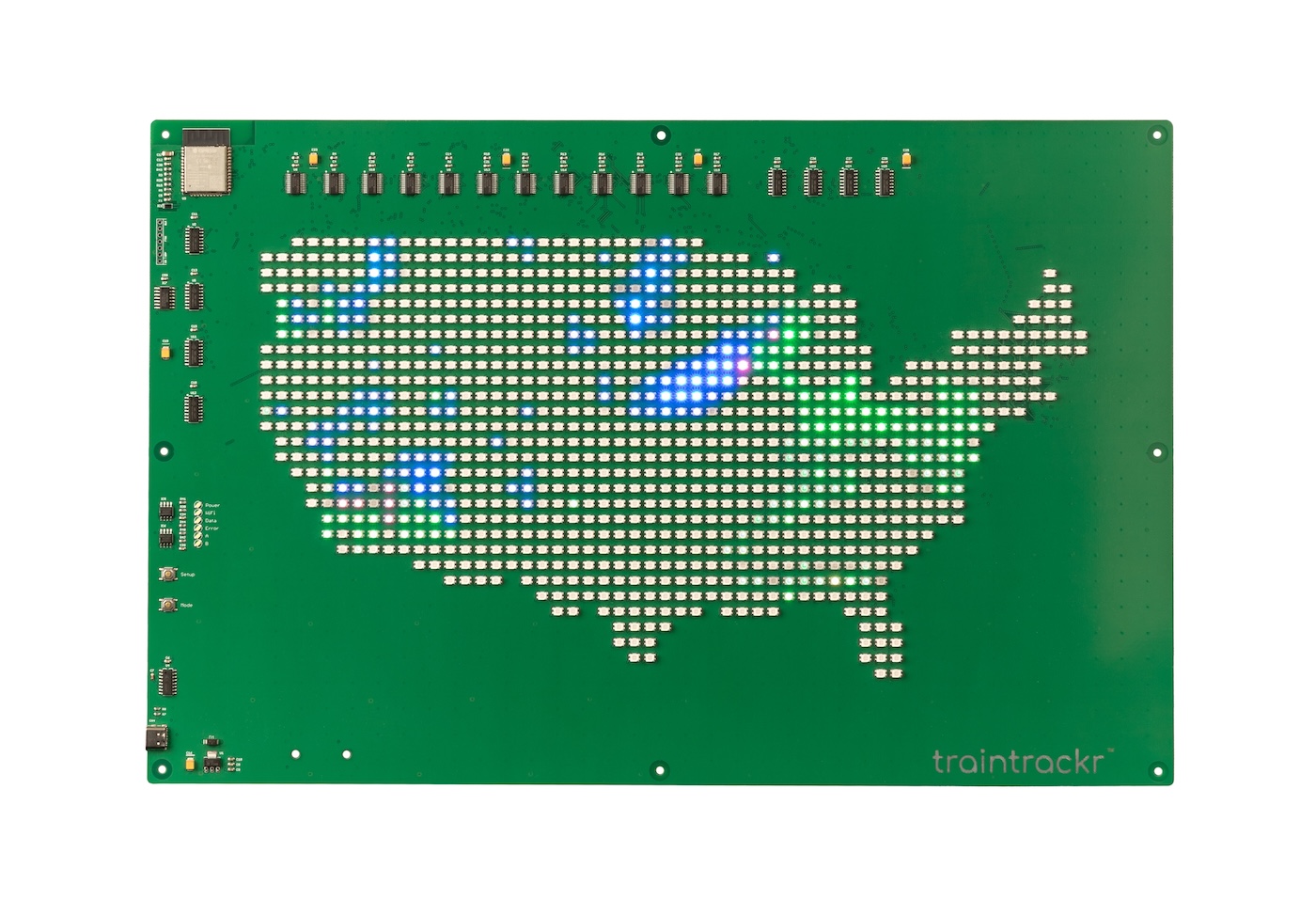

Tracks weather conditions (precipitation, snow, wind speed, cloud cover, sun) through the US, displayed on colored LEDs.
We continually process live weather images on our servers, so you can see what's really happening out there.
Display the most recent conditions, or enable animations to show the evolution of the weather.
At a glance
- Receives live data over WiFi
- LEDs update every 15 minutes
- Uses 1024 Multicolour (RGB) LEDs

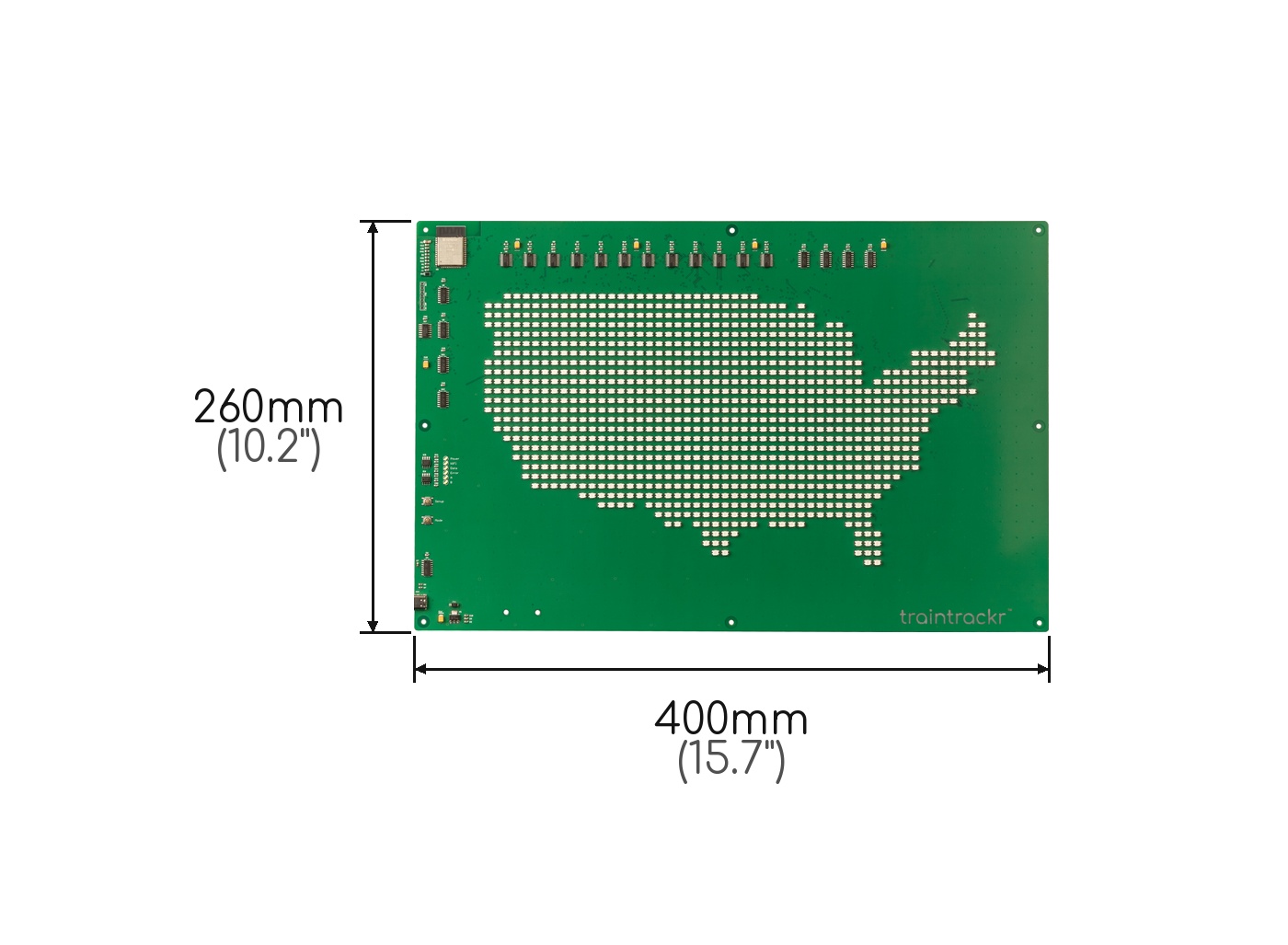

- 400 × 260mm (15.7 × 10.2in)
Displays temperature using a blue-to-orange gradient from 14°F to 86°F (-10°C to 30°C)
Colour-codes precipitation by type and intensity — green for light rain, red for severe storms, and blue, purple and white for snow and ice.
Shows cloud cover and wind speed through LED brightness, up to 100% cover and 200 m/s of wind
Colour-codes precipitation by type and intensity — green for light rain, red for severe storms, and blue, purple and white for snow and ice.
Shows cloud cover and wind speed through LED brightness, up to 100% cover and 200 m/s of wind
Specifications
Connectivity- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2/WPA3
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 1024
- LED Type: 3528 Surface Mount
- LED Size: 3.5mm x 2.8mm
- LED Colour: Multicolour (RGB)
- Brightness control: 16 Level
- 1000mA @ 5V
- Included: Power supply and Cable

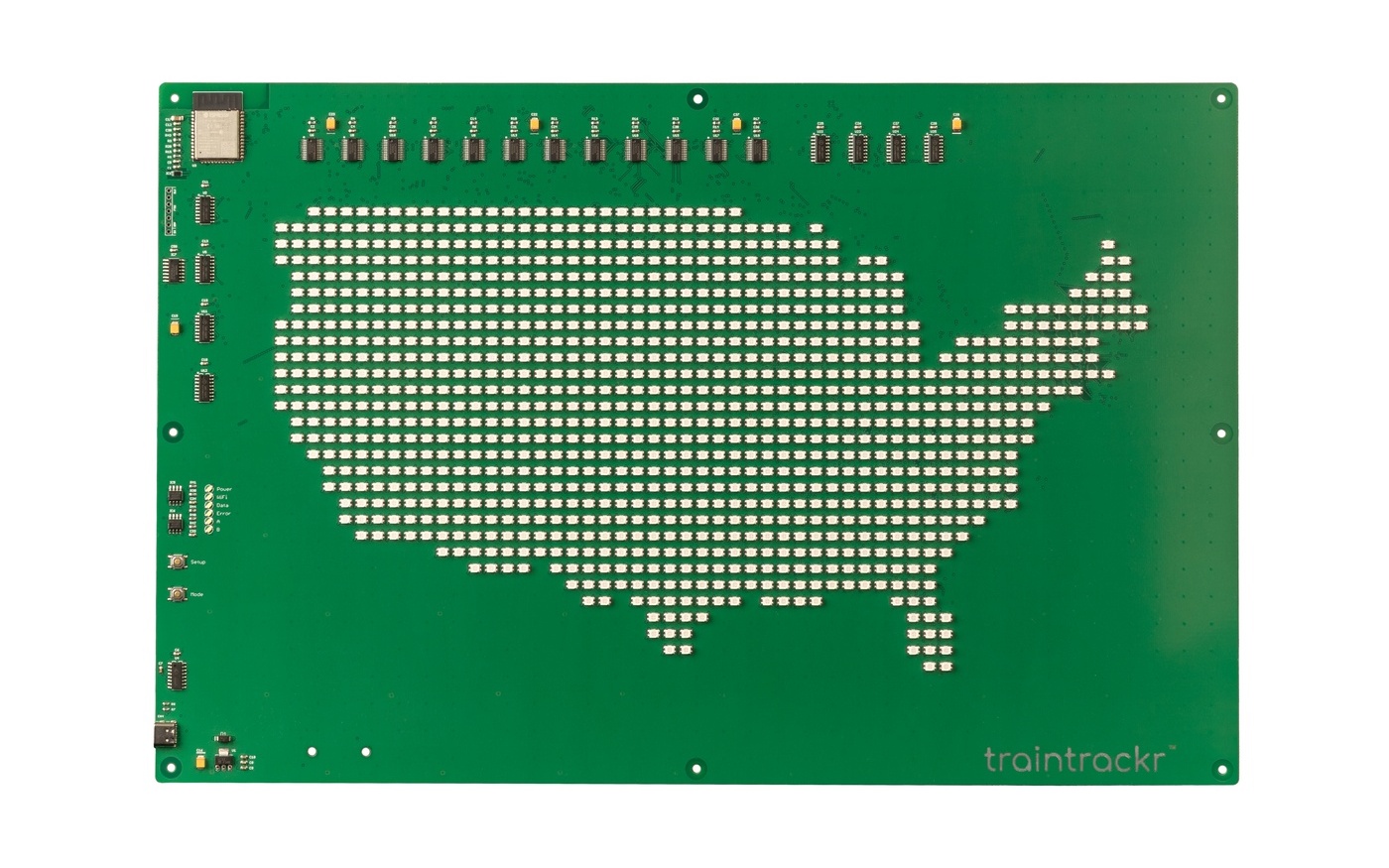

- Material: 1.6mm FR-4
- Size: 400mm x 260mm (15.7in x 10.2in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2028/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble

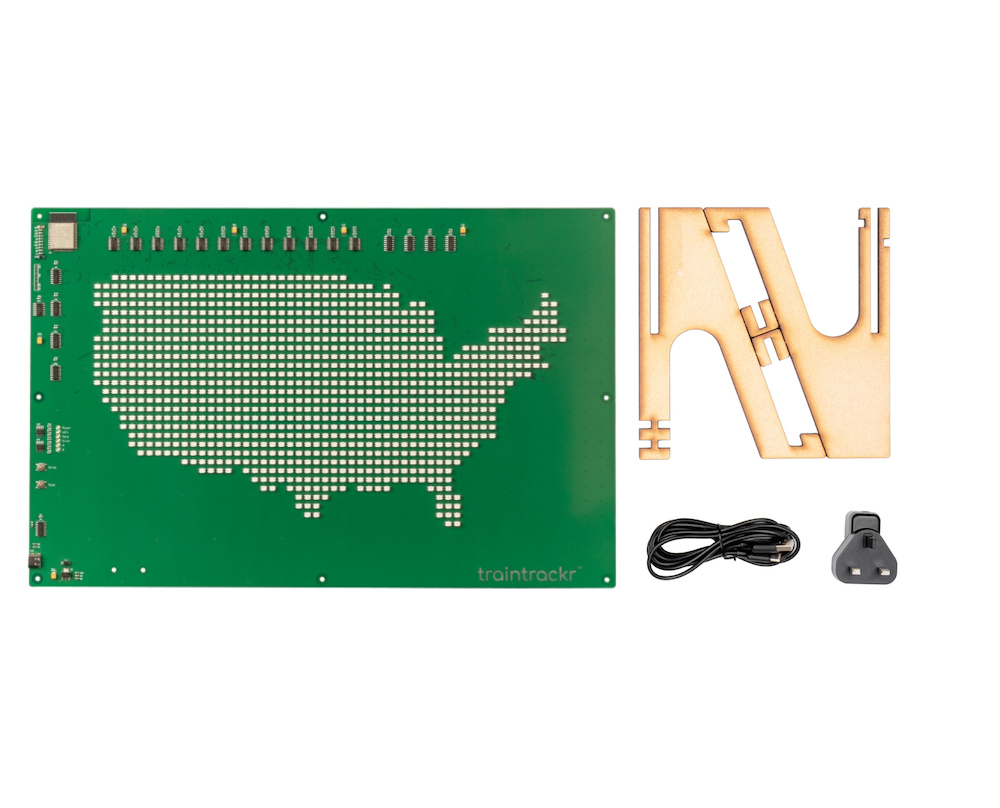

What's in the box
Package Contains- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and warranty
Shipping- Ships to the UK and Europe
- Tracking code supplied once dispatched
- Standard 1 Year
Maker friendly
Firmware- Flash the chip over USB or via FTDI pins
- Programmable using Arduino IDE, MicroPython, or other compatible development tools.
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ page.
