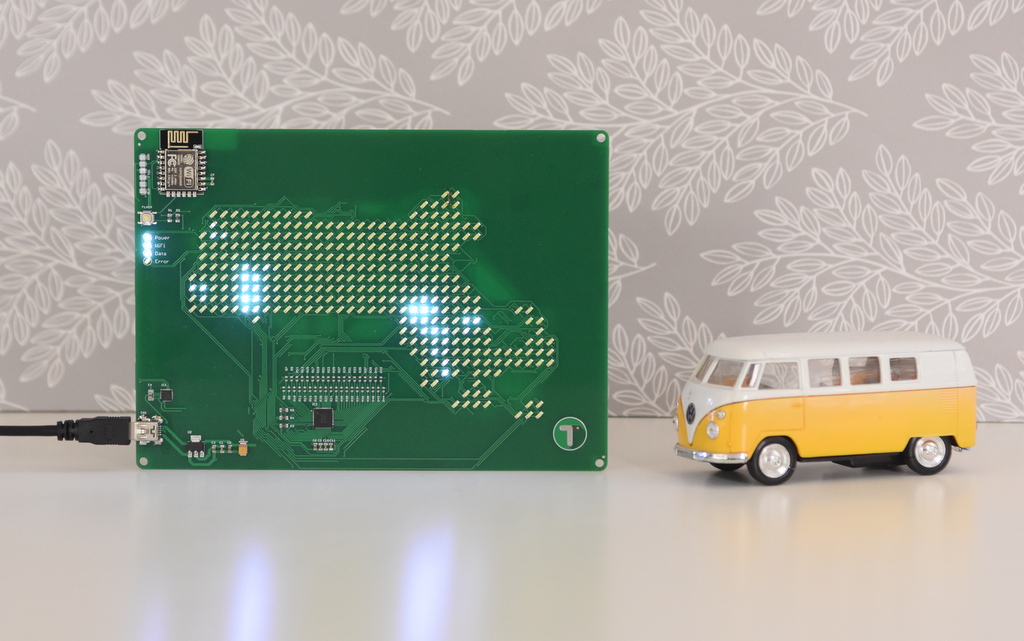

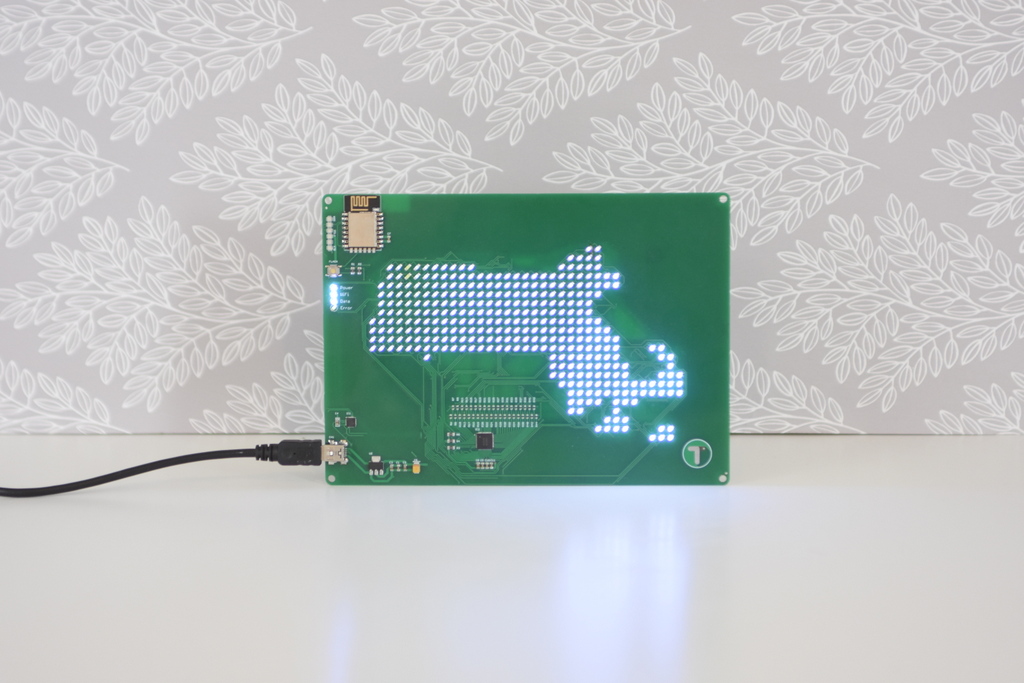

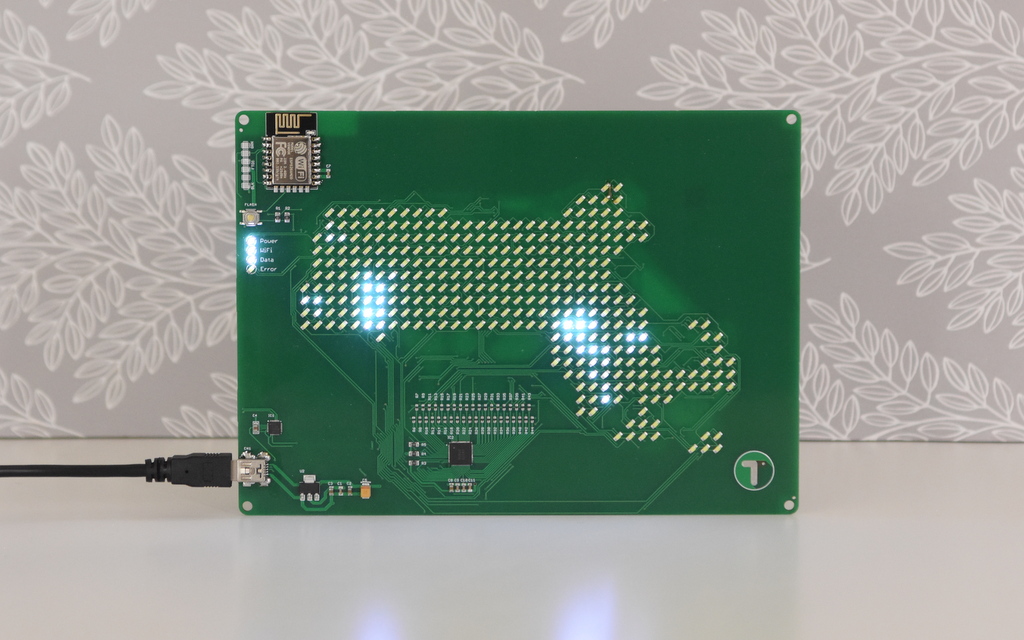

Massachusetts Map Trackr

Shows rain or wind in Massachusetts, with more data layers coming soon. We process precipitation (rain and snow) radar information and online wind speed data, letting you select the layer you want to display.

Shows static or animated data, letting you see the rain/wind conditions building up to where they are now.

Coming Soon: Provide your own data. Send us your geographic data through our API, which we send to your board.

Receives live data over WiFi

LEDs update every 10 minutes / Animated

Uses 340 White LEDs

£119

£107

Presale Discount
Ships July/August 2021

Free UK Shipping
Included

Ships from the UK
No UK Import Duty

Ships to the UK
and Europe

Includes Standard
1 Year Warranty

Designed in Somerville USA
and London UK

Specifications

Connectivity

WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
Data: Connects to our server every minute
Or connect to your own data sources

Display

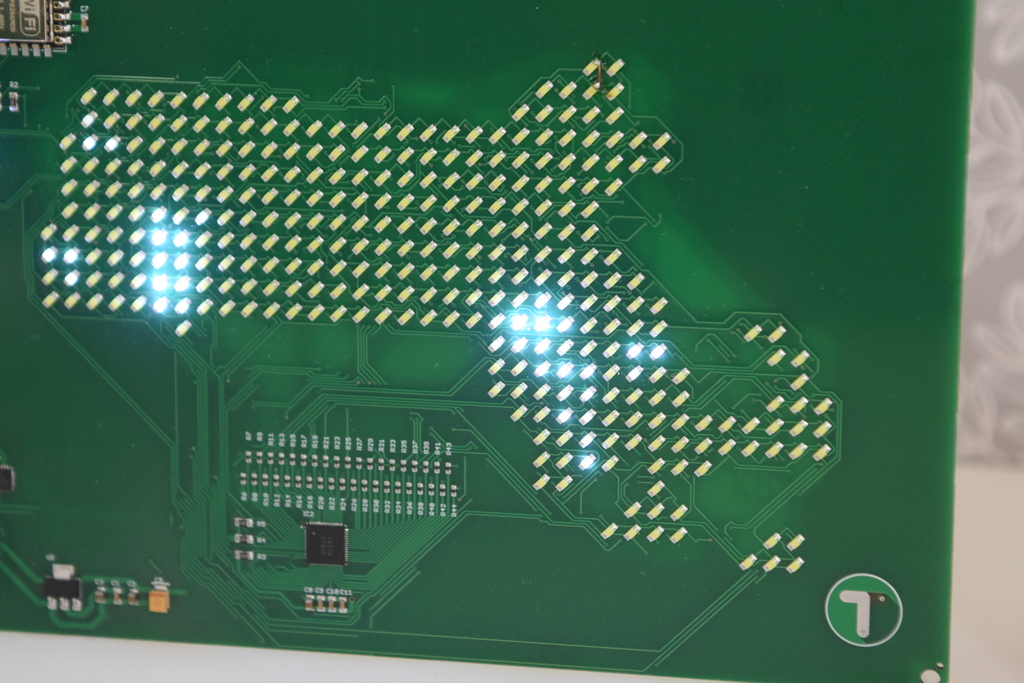

LED Count: 340
LED Type: 0805 Surface Mount
LED Size: 2.0mm x 1.25mm
LED Colour: White
Brightness control: 16 Level

Power

500mA @ 5V
Included: 1.8M USB Cable

Circuit Board

Material: 1.6mm FR-4
Size: 180mm x 130mm (7.1in x 5.1in)
Colour: Green

Main Components

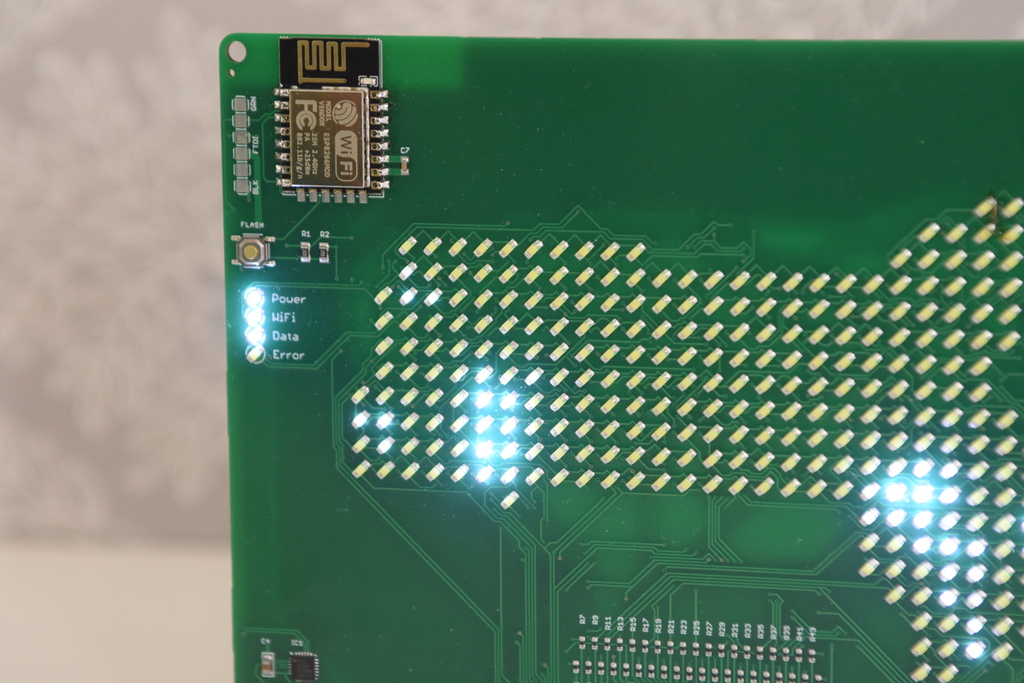

Microcontroller: ESP8266 (ESP-12E)
LED Driver: IS31FL3741A
USB to UART: CP2104 (on some boards)

Stand

Material: 6mm MDF
Laser cut ready to assemble

What's in the Box?

Package Contains

Live Tracker
Wooden Stand
USB Cable
Setup Instructions

Note: You will need to plug this into a USB phone charger or computer USB port for power.

Shipping and Warranty

Shipping

Free UK Shipping
Ships to the UK and Europe
Tracking code supplied once dispatched

Warranty

Standard 1 Year

Maker Friendly

Firmware

Flash the chip via built-in USB to UART, or FTDI Pins
Program using Arduino IDE or similar
Hackable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
