US Rain Trackr
Geographic Map

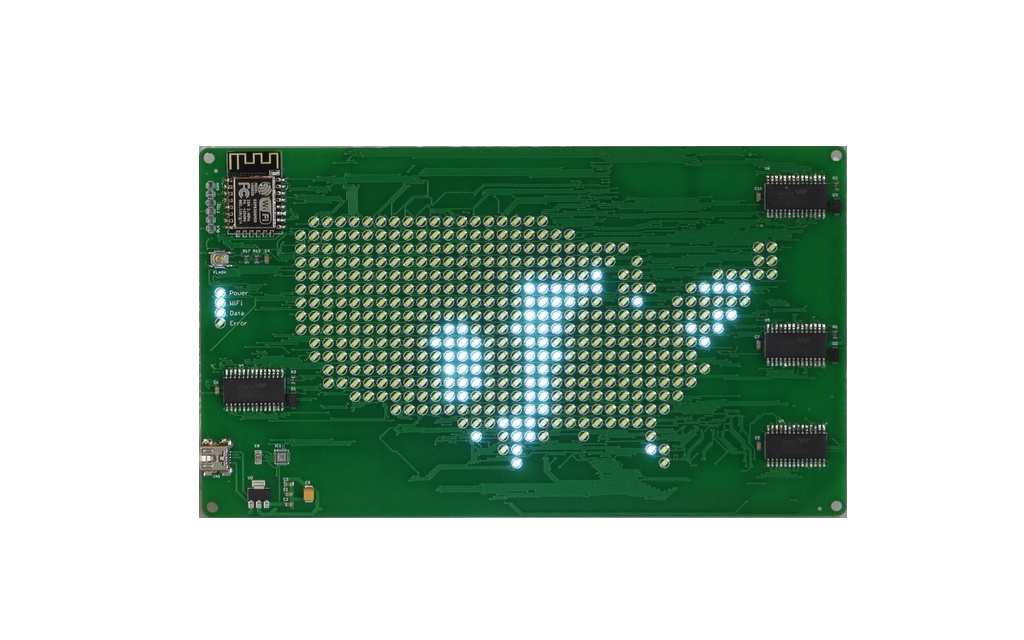

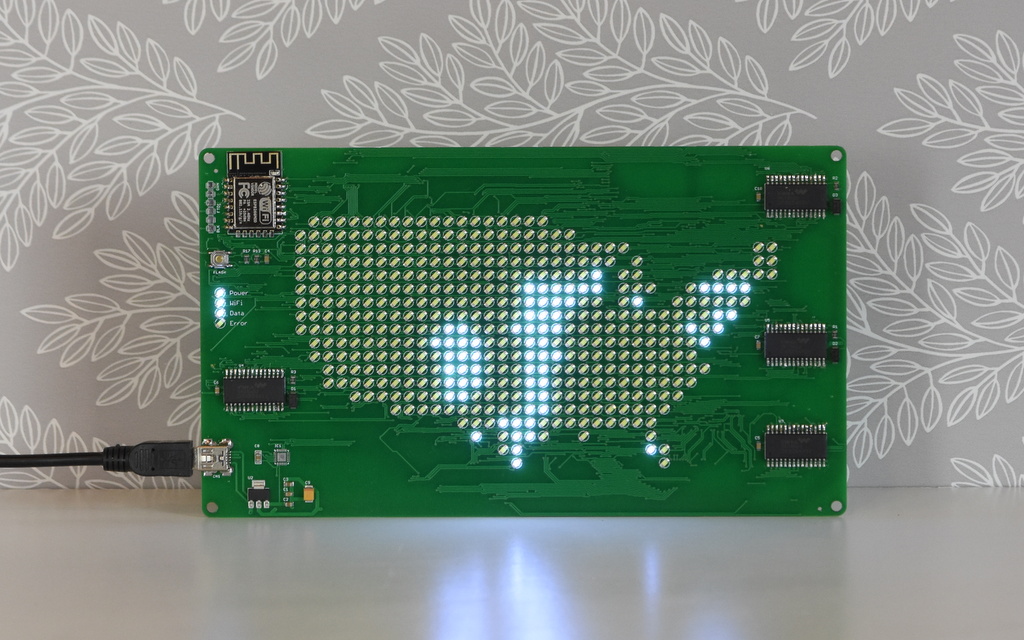

Tracks rain through the US, showing live precipitation (rain and snow) data updated every 10 minutes.
We continually process live radar data on our servers, so you can see how wet it really is out there.
£119
Ships from the UK
No UK Import Duty
Ships to the UK
and Europe
Switch to US
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 440
- LED Type: 0805 surface mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 192mm x 110mm (7.6in x 4.3in)
- Weight: 450g
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the UK and Europe
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
Hats off to @TrackrTrain these PCBs of rail networks that use live open data to show real-time movements are awesome.
